Miniature pyrometer CSmicro 3MH Miniaturized infrared thermometer for temperature measurements of metal, metal oxide and cermaic material

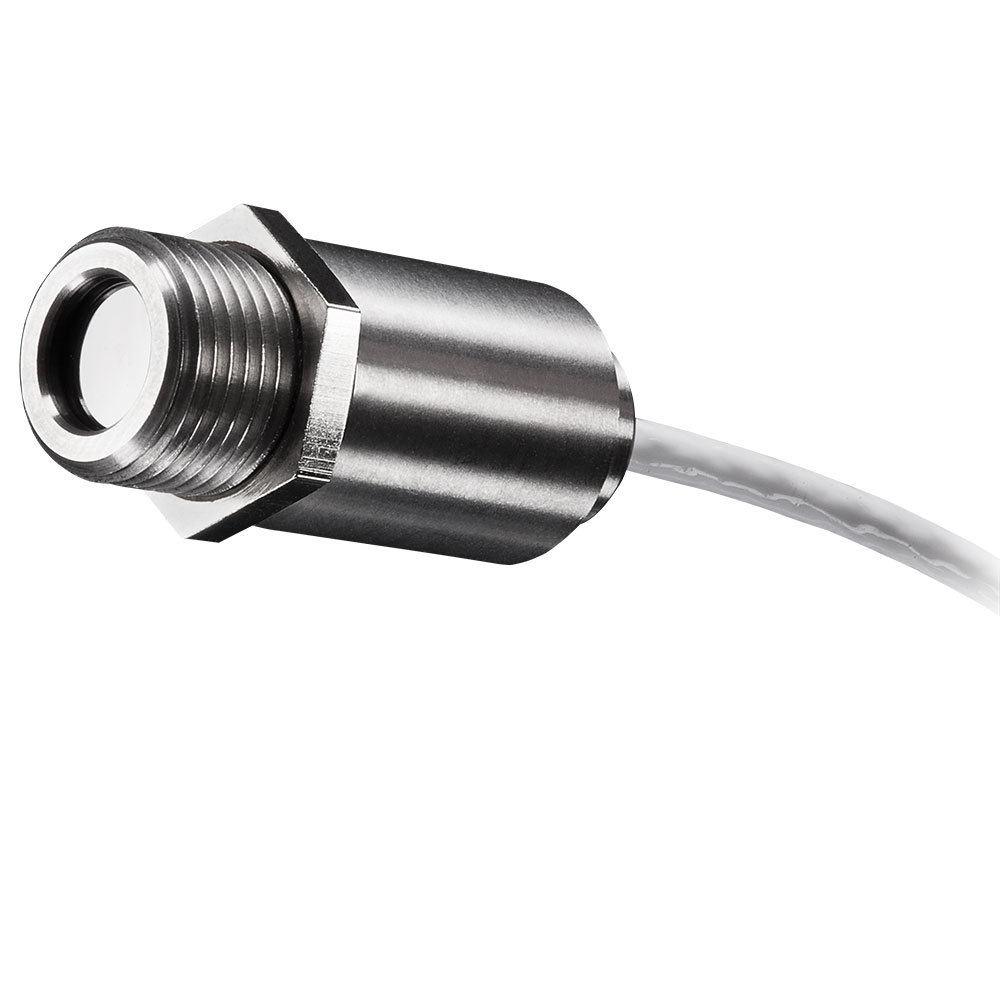

Sensor head Miniatur-Pyrometer CSmicro 3MH Stainless steel housing with compact dimensions
Miniature-Infrared-Thermometer Optris CSmicro 3MHOPTCSMV3MH
Miniature-Infrared-Thermometer
Optris CSmicro 3MH
| Model | Miniature-Infrared-Thermometer Optris CSmicro 3MH |
| articlenumber | OPTCSMV3MHSF0505, OPTCSMV3MHSF0505K, OPTCSMV3MHSF053, OPTCSMV3MHSF053K, OPTCSMV3MHSF056, OPTCSMV3MHSF056K, OPTCSMV3MHSF305, OPTCSMV3MHSF305K, OPTCSMV3MHSF33, OPTCSMV3MHSF33K, OPTCSMV3MHCF0505, OPTCSMV3MHCF0505K, OPTCSMV3MHCF053, OPTCSMV3MHCF053K, OPTCSMV3MHCF056, OPTCSMV3MHCF056K, OPTCSMV3MHCF305, OPTCSMV3MHCF305K, OPTCSMV3MHCF33, OPTCSMV3MHCF33K, OPTCSMV3MHCF10505, OPTCSMV3MHCF10505K, OPTCSMV3MHCF1053, OPTCSMV3MHCF1053K, OPTCSMV3MHCF1056, OPTCSMV3MHCF1056K, OPTCSMV3MHCF1305, OPTCSMV3MHCF1305K, OPTCSMV3MHCF133, OPTCSMV3MHCF133K |
| Variante | integrated electronic |
| Temperature range | 100°C ... 600°C |
| Spectral range | 2,3 µm |
| Optical resolution (D:S) | 33 : 1 |
| Spot size: up from | 1,0 mm |
| Response time | 8 ms |
| Power supply | 5 - 30 VDC |
| Outputs | 0 ... 5/10 V, Alarm output 0-30V / 50 mA (open collector) |
| Thermal Sensitivity (NETD) | 50 mK |
| Interface optional | USB |
| Software | optris CompactConnect (Windows), IRmobile (Android) |
| Ambient temperature sensor head | -20°C ... 85°C |
| Ambient temperature electronics | -20°C ... 80°C |
| Sighting scope | LED aiming |
| Application | Metal / Ceramic, Non-metals |
| Manual | Manual Optris CS series |
| Alternative product numbers | CSmiM-3HSF33 |
