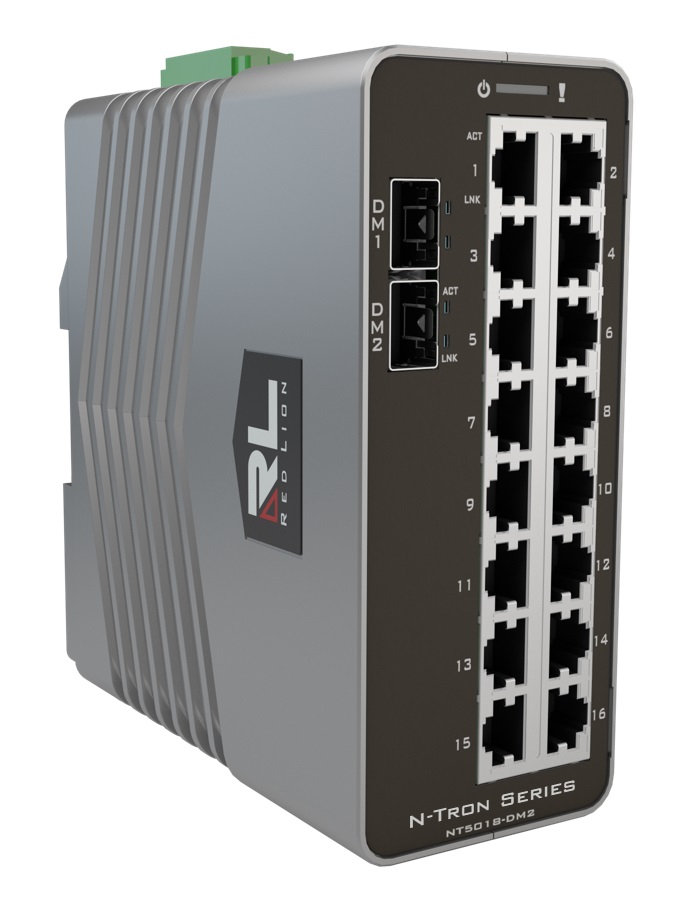

N-TRON NT-5018-DM2 – Kompakter 18-Port Gigabit Managed Switch Konfiguration über intuitive Web-Oberfläche und umfassende Diagnosefunktionen für den robusten industriellen Einsatz
N-TRON NT-5018-DM2 Managed 18-Port Gigabit SwitchNT-5018-DM2
N-TRON 18-Port Gigabit Managed Industrial Ethernet Switch (16 10/100/1000 BaseT RJ45 Ports & 2 Dual Mode 100/1000Base SFP Expansion Slots)
| Modell | N-TRON Managed Gigabit Switch |
| Typ | Managed Switch |
| Gesamtzahl Ports | 18 |
| 10/100/1000 Kupfer | 16 |
| Übertragungsrate | 10/100/1000 Mbit/s |
| Anzahl MAC Adressen | 8k |
| Betriebstemperatur | -40°C ... +80°C |
| Versorgungsspannung | 10-49 VDC |
| 100/1000 SFP Slot | 2 |
| Gehäusematerial | Metall |
| Montage | DIN-Hutschiene, optional Wandmontage |
| Abmessungen | 150,6 x 57,1 x 129,8 mm |
| Besonderheiten | N-Ring™ Technologie mit ~30ms healing Password encryption, IEEE 802.1X, RADIUS, MAC filtering, syslog Advanced management and diagnostics features MTBF: 1,2 Mio. h Shock & Vibration (panel mounted): IEC 68-2-27: 200 g @ 10 ms Triaxial; non-operational IEC 68-2-6: 15 g @ 5-200 Hz Triaxial; operational |
| Zertifizierung | ABS Type Approval for Shipboard Applications, Designed to Comply with: IEEE 1613 (Electric Utility Substations), NEMA TS1/TS2 (Traffic Control), EMI/EMC: CFR 47, Part 15, Subpart B, Canada ICES-003, ANSI C63.4, EN 61000-6-2 and 4, IEC 61000-4-2, 3, 4, 5, 6 and 8, Product Safety: UL 61010 and C22.2 No. 61010 OrdLoc, UL 121201 and CSA C22.2 No. 213 Class I, Division 2 HazLoc, ATEX, IECEx and UKEx II 3 G Ex ec nC IIC T4 Gc, UL 20 ATEX 2645X, UL 22.0038X IECEx and UL22UKEX2346X, Rail: EN 50155, EN50121, EN61373, RoHS, Shock & Vibration (panel mounted) - IEC 68-2-27: 200 g @ 10 ms Triaxial; non-operational, IEC 68-2-6: 15 g @ 5-200 Hz Triaxial; operational |
