Miniature pyrometer CSmicro 3MH Miniaturized infrared thermometer for temperature measurements of metal, metal oxide and cermaic material

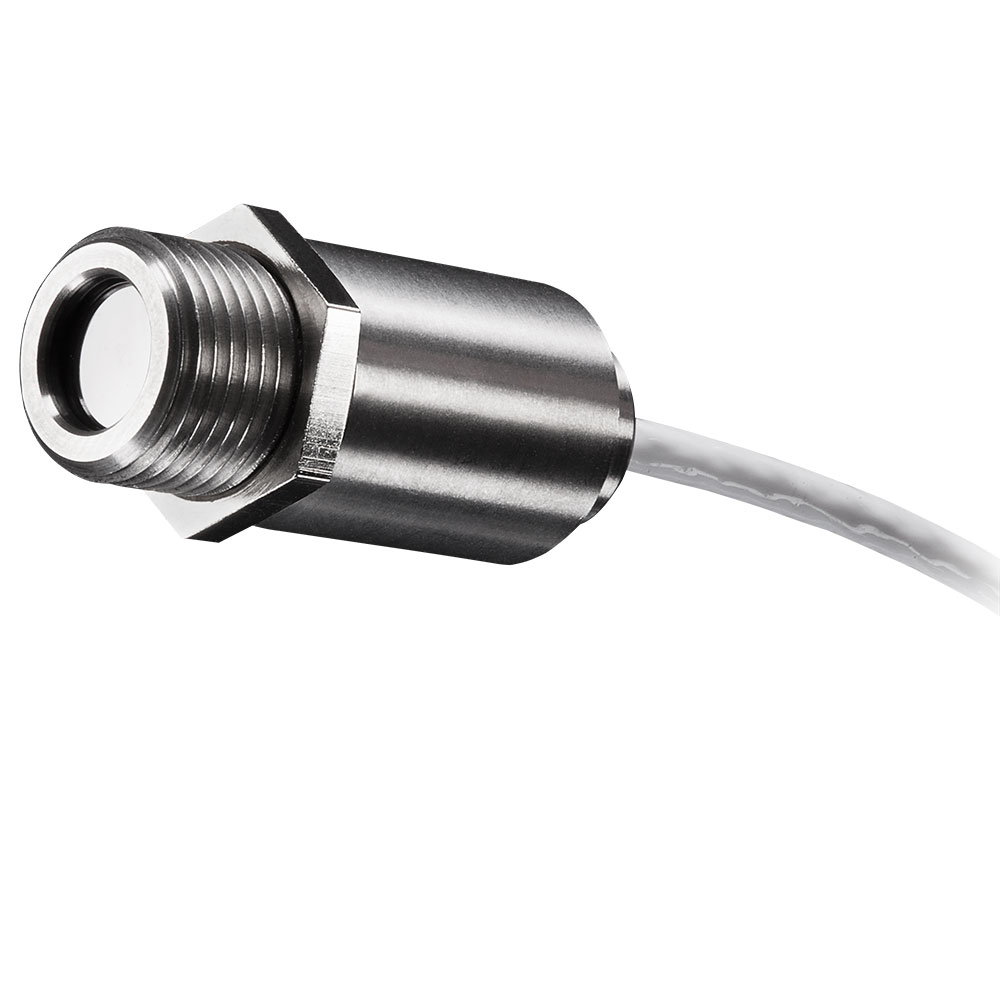

Sensor head Miniatur-Pyrometer CSmicro 3MH Stainless steel housing with compact dimensions
Miniature-Infrared-Thermometer Optris CSmicro 3MHOPTCSMA3MH
Miniature-Infrared-Thermometer
Optris CSmicro 3MH
| Model | Miniature-Infrared-Thermometer Optris CSmicro 3MH |
| articlenumber | OPTCSMA3MHSF0505, OPTCSMA3MHSF0505K, OPTCSMA3MHCF0505, OPTCSMA3MHCF0505K, OPTCSMA3MHCF10505, OPTCSMA3MHCF10505K, OPTCSMA3MHSF053, OPTCSMA3MHSF053K, OPTCSMA3MHCF053, OPTCSMA3MHCF053K, OPTCSMA3MHCF1053, OPTCSMA3MHCF1053K, OPTCSMA3MHSF056, OPTCSMA3MHSF056K, OPTCSMA3MHCF056, OPTCSMA3MHCF056K, OPTCSMA3MHCF1056, OPTCSMA3MHCF1056K, OPTCSMA3MHSF305, OPTCSMA3MHSF305K, OPTCSMA3MHCF305, OPTCSMA3MHCF305K, OPTCSMA3MHCF1305, OPTCSMA3MHCF1305K, OPTCSMA3MHSF33, OPTCSMA3MHSF33K, OPTCSMA3MHCF33, OPTCSMA3MHCF33K, OPTCSMA3MHCF133, OPTCSMA3MHCF133K |
| Variante | integrated electronic |
| Temperature range | 100°C ... 600°C |
| Spectral range | 2,3 µm |
| Optical resolution (D:S) | 33 : 1 |
| Spot size: up from | 1,0 mm |
| Response time | 20 ms |
| Power supply | 5 - 30 VDC |
| Outputs | 4 ... 20 mA, Alarm output 0-30V / 500 mA (open collector) |
| Thermal Sensitivity (NETD) | 50 mK |
| Interface optional | USB |
| Software | optris CompactConnect (Windows), IRmobile (Android) |
| Ambient temperature sensor head | -20°C ... 85°C |
| Ambient temperature electronics | -20°C ... 75°C |
| Sighting scope | LED aiming |
| Application | Metal / Ceramic, Non-metals |
| Manual | Manual Optris CSmicro series |
