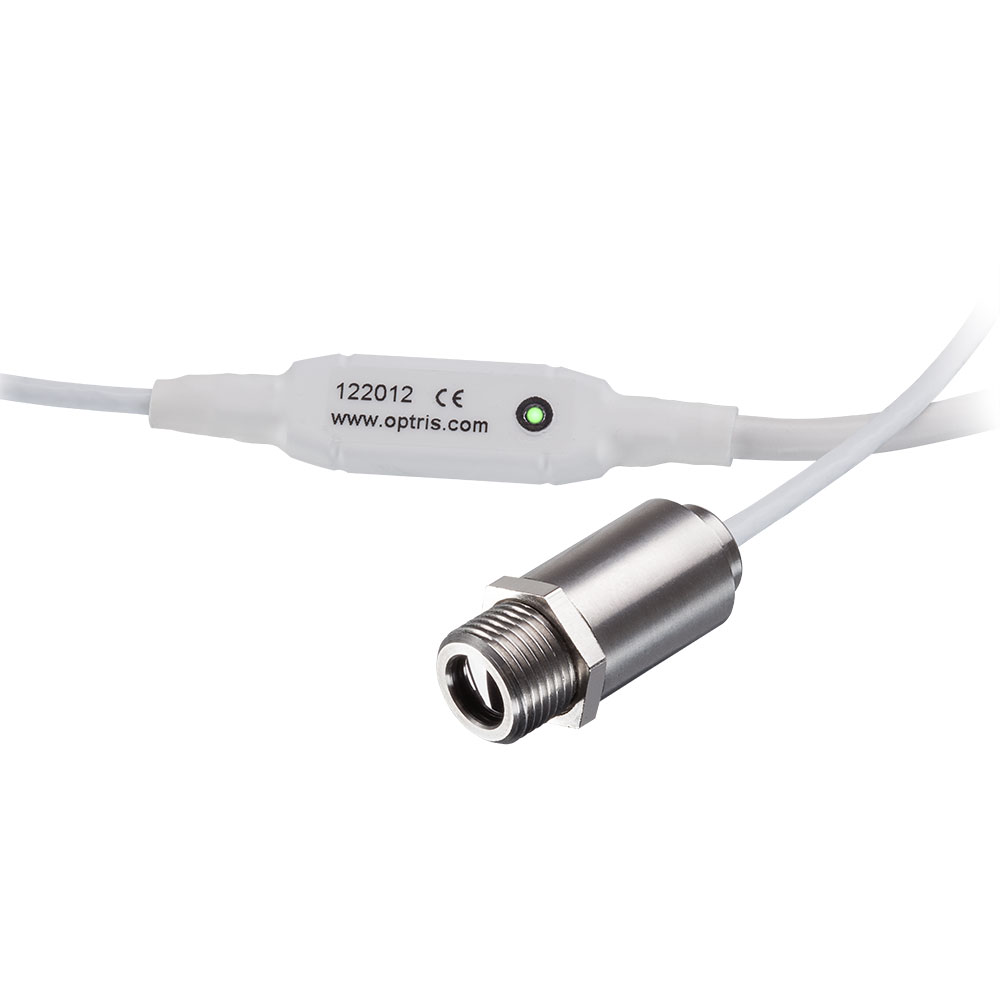

Miniature pyrometer CSmicro LT Green LED alarm indication, aiming support, selfdiagnostic or temperature code indication
Miniature Pyrometer CSmicro LT Very small sensing head of 14 mm usable up to 120°C ambient temperature without cooling (sensor head)
Miniature-Infrared-Thermometer Optris CSmicro LT02OPTCSMALT02
Miniature-Infrared-Thermometer
Optris CSmicro LT02
| Model | Miniature-Infrared-Thermometer Optris CSmicro LT02 |
| articlenumber | OPTCSMALT02SF0505, OPTCSMALT02SF0505K, OPTCSMALT02CF0505, OPTCSMALT02CF0505K, OPTCSMALT02SF053, OPTCSMALT02SF053K, OPTCSMALT02CF053, OPTCSMALT02CF053K, OPTCSMALT02SF056, OPTCSMALT02SF056K, OPTCSMALT02CF056, OPTCSMALT02CF056K, OPTCSMALT02SF305, OPTCSMALT02SF305K, OPTCSMALT02CF305, OPTCSMALT02CF305K, OPTCSMALT02SF33, OPTCSMALT02SF33K, OPTCSMALT02CF33, OPTCSMALT02CF33K, OPTCSMALT02SF605, OPTCSMALT02SF605K, OPTCSMALT02CF605, OPTCSMALT02CF605K, OPTCSMALT02SF63, OPTCSMALT02SF63K, OPTCSMALT02CF63, OPTCSMALT02CF63K |
| Variante | integrated electronic |
| Temperature range | -50°C ... 1030°C |
| Spectral range | 8 ... 14 µm |
| Optical resolution (D:S) | 2 : 1 |
| Spot size: up from | 2,5 mm |
| Response time | 14 ms |
| Power supply | 5 - 30 VDC |
| Outputs | 4 ... 20 mA, Alarm output 0-30V / 500 mA (open collector) |
| Thermal Sensitivity (NETD) | 50 mK |
| Interface optional | USB |
| Software | optris CompactConnect (Windows), IRmobile (Android) |
| Ambient temperature sensor head | -20°C ... 120°C |
| Ambient temperature electronics | -20°C ... 75°C |
| Sighting scope | LED aiming |
| Application | Non-metals |
| Manual | Manual Optris CSmicro series |
