Compact pyrometer CT 2MH1 Miniaturized infrared thermometer for temperature measurements in metalworking processes, molten metals and welding

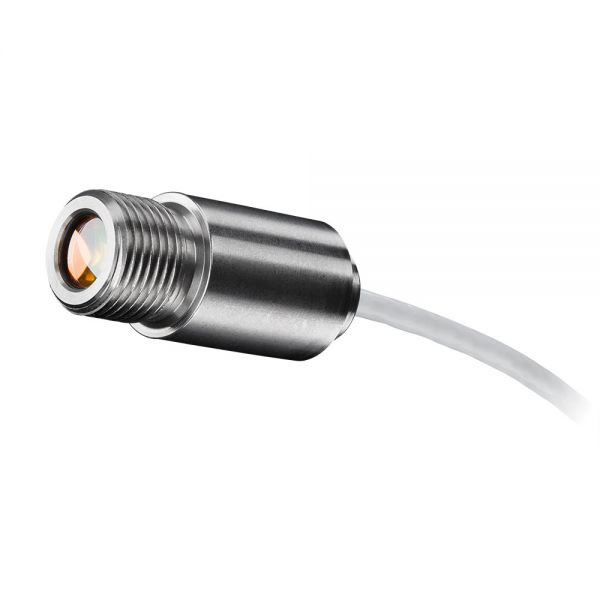

Sensor head Compact-Pyrometer CT 2MH1 Very small sensing head of 14 mm usable up to 125°C ambient temperature without cooling (sensor head)
Compact-Infrared-Thermometer Optris CT 2MH1OPTCT2MH1
Compact-Infrared-Thermometer
Optris CT 2MH1
| Model | Compact-Infrared-Thermometer Optris CT 2MH1 |
| articlenumber | OPTCT2MH1SF, OPTCT2MH1CF, OPTCT2MH1SFCB8, OPTCT2MH1CFCB8, OPTCT2MH1SFCB15, OPTCT2MH1CFCB15 |

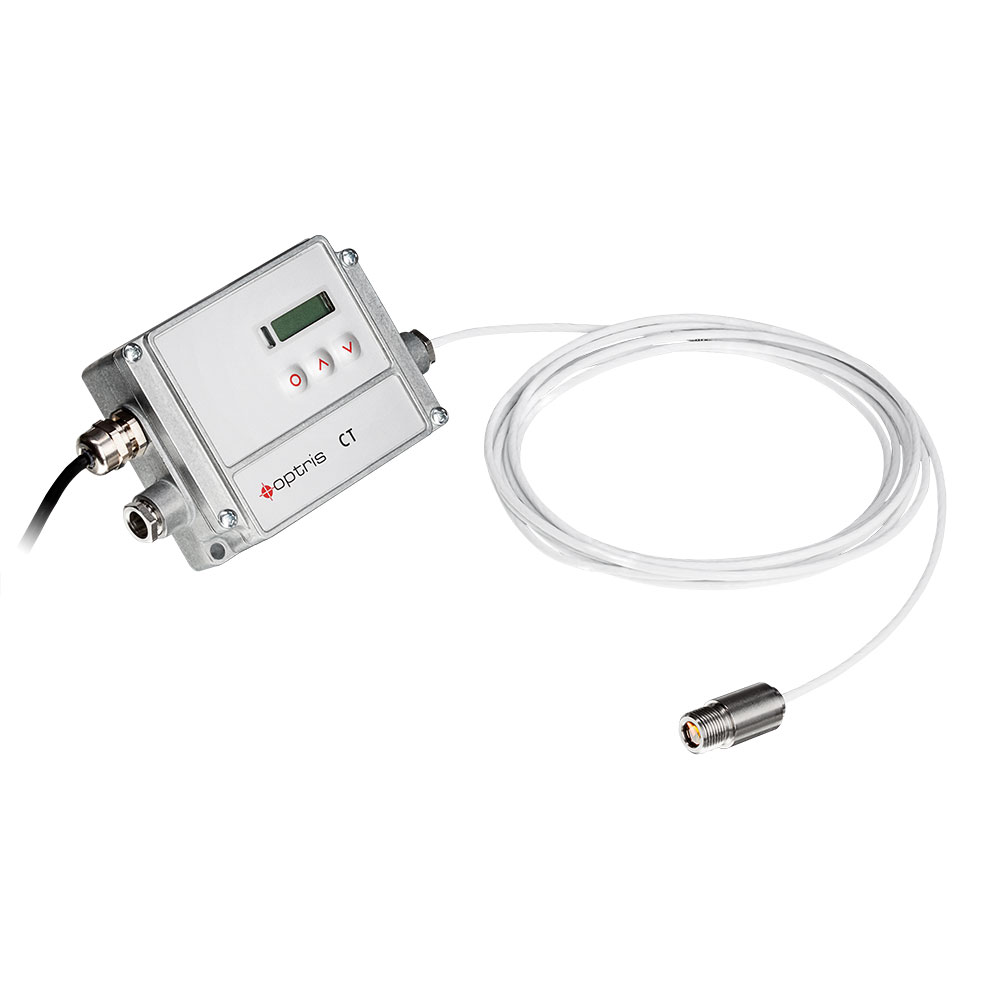

| Variante | separate electronics box with programming buttons and display |
| Temperature range | 490°C ... 2000°C |
| Spectral range | 1,6 µm |
| Optical resolution (D:S) | 75 : 1 |
| Spot size: up from | 1,5 mm |
| Response time | 1 ms |
| Power supply | 8 - 36 VDC |
| Outputs | 0/4 ... 20 mA, 0 ... 5/10 V, Thermocouple J+K, Alarm output 24V / 50 mA (open collector), Relay: 2 x 60 VDC / 0,4 A optically isolated (optional) |
| Interface optional | USB, RS232, RS485, Profibus DP, Ethernet, CAN |
| Software | optris CompactConnect (Windows), IRmobile (Android) |
| Ambient temperature sensor head | -20°C ... 125°C |
| Ambient temperature electronics | 0°C ... 85°C |
| Sighting scope | without |
| Application | Metal / Ceramic, Molten metal, Non-metals |
| Manual | Manual Optris CT series |
| Alternative product numbers | CTM-2CF75H1-C3, CTM-2CF75H1-C8 CTM-2SF75H1-C3, CTM-2SF75H1-C8 |
