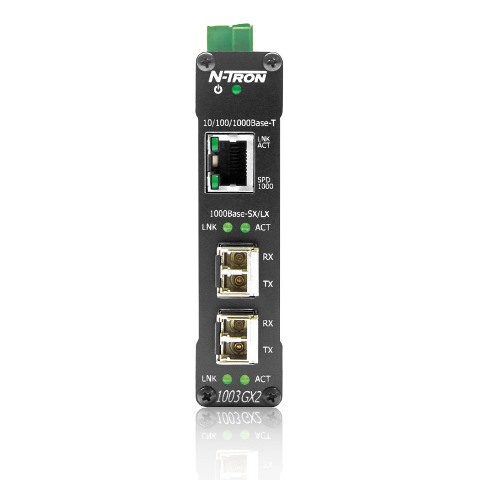

N-TRON Unmanaged 3-Port Gigabit Switch1003GX2
N-TRON Unmanaged Gigabit 3-Port Switch
Modell | N-TRON Unmanaged Gigabit Switch |
Typ | Unmanaged Switch |
Gesamtanzahl Ports | 3 |
10/100/1000 Kupfer | 1 |
GIG SFP | 2 |
Gehäusematerial | Metall |
Betriebstemperatur | -40°C ... +85°C |
Abmessungen | 26 x 102 x 94 mm |
Besonderheiten | MTBF: 2 Mio. Stunden Schock: 100G/10ms Vibration: 50G/Triaxial 5-200Hz ESD: +/- 16kV |
Versorgungsspannung | 10-30 VDC |
Übertragungsrate | 10/100/1000 Mbit/s |
Anzahl MAC Adressen | 1024 |
Montage | DIN-Hutschiene |
Schutzgrad | IP30 |
Zertifizierung | Product Safety: USA UL508 Industrial Control Equipment, ANSI/ISA 12.12.01-2015 Class I and II, Div. 2 and Class III, Div. 1 and 2, Groups A, B, C and D Hazardous Locations, T4 UL508 Industrial Control Equipment ANSI/ISA-12.12.01-2013, Class I and II,Division 2 and Class III, Divisions 1, Emissions: FCC Title 47, Part 15, Radio Frequency Devices, Subpart B, ANSI C63.4-2009; Industry Canada ICES-003, EN 55032, EN 61000-3-2, EN61000-3-3, EN 55024, EN 61000-6-2, EN 61000-4-2 (ESD); EN 61000-4-3 (RFAM); EN 61000-4-4 (EFT); EN 61000-4-5 (SURGE); EN 61000-4-6 (RFCM); EN 61000-4-8 (PFMF); EN 61000-4-11 (VDI), ABS Type Approval for Shipboard Applications, Designed to Comply with: IEEE 1613 (Electric Utility Substations), NEMA TS1/TS2 (Traffic Control), RoHS |
