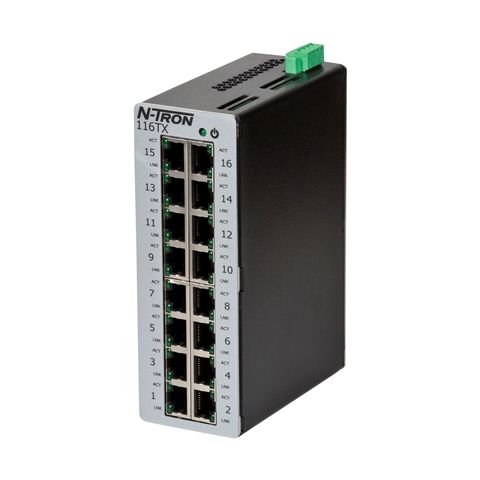

N-TRON Unmanaged 16-Port Ethernet Switch116TX
N-TRON Unmanaged Ethernet 16-Port Switch
Modell | N-TRON Unmanaged Ethernet Switch |
Typ | Unmanaged Switch |
Gesamtanzahl Ports | 16 |
10/100 Kupfer | 16 |
Gehäusematerial | Metall |
Betriebstemperatur | -40°C ... +85°C |
Abmessungen | 51 x 146 x 102 mm |
Besonderheiten | MTBF: 2 Mio. Stunden Schock: 100G/10ms Vibration: 50G/Triaxial 5-200Hz ESD: +/- 16kV |
Versorgungsspannung | 10-49 VDC |
Übertragungsrate | 10/100 MBit/s |
Anzahl MAC Adressen | 2048 |
Montage | DIN-Hutschiene |
Schutzgrad | IP30 |
Zertifizierung | ANSI/ISA 12.12.01-2015 Class I and II, Div. 2 and Class III, Div. 1 and 2, Groups A, B, C and D Hazardous Locations, T4 UL508 Industrial Control Equipment ANSI/ISA-12.12.01-2013, Class I and II,Division 2 and Class III, Divisions 1, Emissions: FCC Title 47, Part 15, Radio Frequency Devices, Subpart B, ANSI C63.4-2009; Industry Canada ICES-003, EN 55032, EN 61000-3-2, EN61000-3-3, EN 55024, EN 61000-6-2, EN 61000-4-2 (ESD); EN 61000-4-3 (RFAM); EN 61000-4-4 (EFT); EN 61000-4-5 (SURGE); EN 61000-4-6 (RFCM); EN 61000-4-8 (PFMF); EN 61000-4-11 (VDI), ABS Type Approval for Shipboard Applications, Designed to Comply with: IEEE 1613 (Electric Utility Substations), NEMA TS1/TS2 (Traffic Control), LV Directive 2014/35/EU GOST-R, RoHS |
