Sixnet Managed Ethernet Switch Real-Time Ring, Modbus / TCP und HTTPS gewährleisten einen zuverlässigen und sicheren Betrieb in industriellen Anwendungen

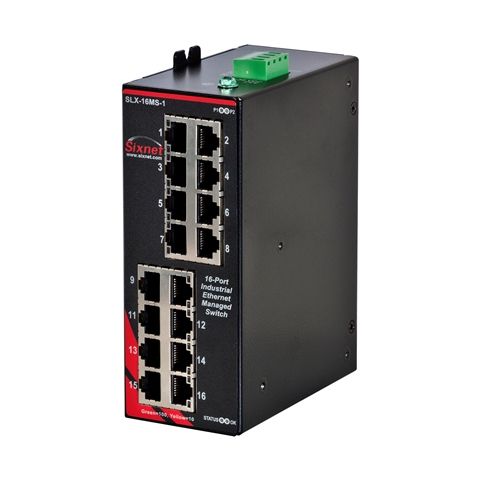

Sixnet Managed 16-Port Ethernet SwitchSLX-16MS-1
Sixnet Managed Ethernet 16-Port Switch
| Modell | Sixnet Managed 16-Port Switch |
| Schutzgrad | IP30 |
| Typ | Managed Switch |
| Gesamtzahl Ports | 16 |
| 10/100 Kupfer | 16 |
| Übertragungsrate | 10/100 MBit/s |
| Anzahl MAC Adressen | 2048 |
| Betriebstemperatur | -40°C ... +75°C |
| Versorgungsspannung | 10-30 VDC |
| Gehäusematerial | Aluminium |
| Montage | DIN-Hutschiene |
| Abmessungen | 54 x 152,9 x 121,9 mm |
| Besonderheiten | Real-Time Ring, Priority Queuing, IGMP, RMON und SNMP MTBF: 2 Mio. Stunden Schock: 100G/10ms Vibration: 50G/Triaxial 5-200Hz ESD: +/- 16kV |
| Zertifizierung | ABS Type Approval for Shipboard Applications, ANSI/ISA 12.12.01-2015 Class I and II, Div. 2 and Class III, Div. 1 and 2, Groups A, B, C and D Hazardous Locations, T4 UL508 Industrial Control Equipment ANSI/ISA-12.12.01-2013, Class I and II,Division 2 and Class III, Divisions 1, CAN/CSA-C22.2 No. 213-15, Hazardous Locations, CAN/CSA-C22.2 No. 14-13, Industrial Control Equipment, Emissions: FCC Title 47, Part 15, Radio Frequency Devices, Subpart B, ANSI C63.4-2009; Industry Canada ICES-003, EN 55032, EN 61000-3-2, EN61000-3-3, Product Safety: USA UL508 Industrial Control Equipment |
